Vasari Round Series
The Vasari Round is a downlight in ELR's Modular Pro grade — the highest build in the range, with tilting up to 30°. Takes 7 interchangeable LED module options, module can be upgraded on site with Ceiling Safe features. Beam angles range from 15° to 60° — narrow for accent, wide for general wash. Colour temperature in 2200K to 5000K, tuneable white or settable 1800K to 5500K with flexiK. Specify body in Matt White RAL 9003 or Matt Black RAL 9011, reflector in matt or chrome. Available round. With Trim or Trimless installation. Rated IP54 at the room side — protected against water splash, for shower areas and semi-outdoor positions.
Fixture Type:
Fixture
Cutout
150mm (Trim), 150mm (Trimless)
Size
161mm (Trim), 147mm (Trimless)
Beam Angle
15°, 35°, 60°
LED Module & Driver
CRI
ProART (Ra 95, R9 >50), ProART98 (Ra 98, R9 >95)
Delivered Lumens
3282lm - 9547lm
System Power
36W - 66W
CCT
Single CCT, tuneWHITE, FlexiK

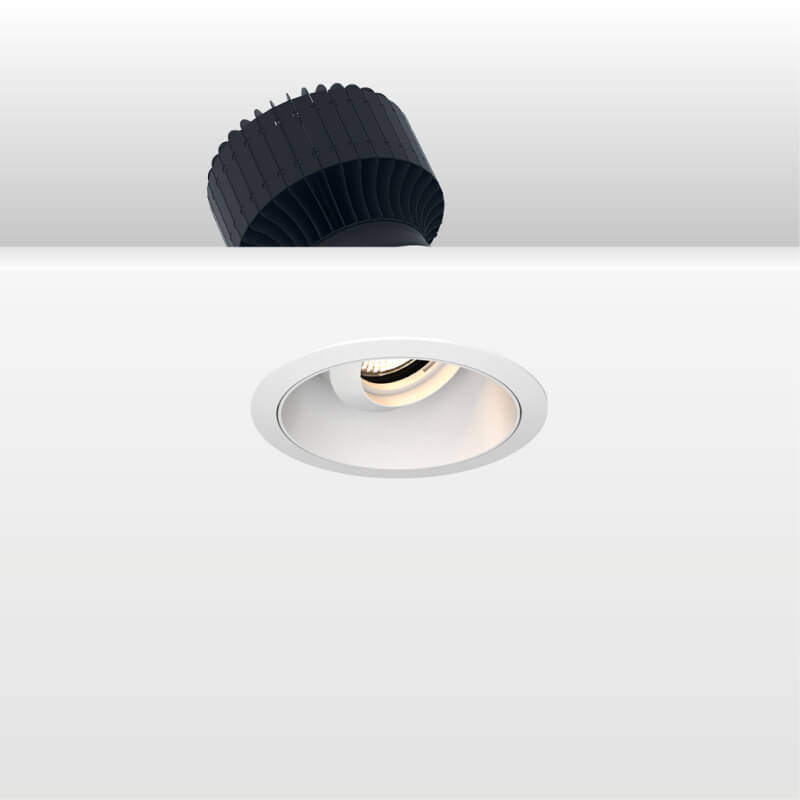

VASARI 6 ROUND
Technology and Feature
Ceiling Safe
ATePS
ComfyEYE
X-Beam
ProART98
ProART
NFC
Driver
Non-Dim
Phase
0-10V
DALI
Casambi
DALI DT8
Accessories
Anti-Glare Louvre
Soft Lens
Comfort Pro
Linear Spread Lens
IP54 Seal
Fixture
Colour Options
Colour
Matt White RAL 9003
Matt Black RAL 9011
Reflector Colour
Matt White RAL 9003
Matt Black RAL 9011
Chrome
Colour Temp
5000K
4000K
3500K
3000K
2700K
2400K
2200K
tuneWHITE 2700K-6500K
tuneWHITE 2700K-5500K
tuneWHITE 1800K-4000K
FlexiK
Beam Angle
60°
35°
15°
