Snoop Track Series

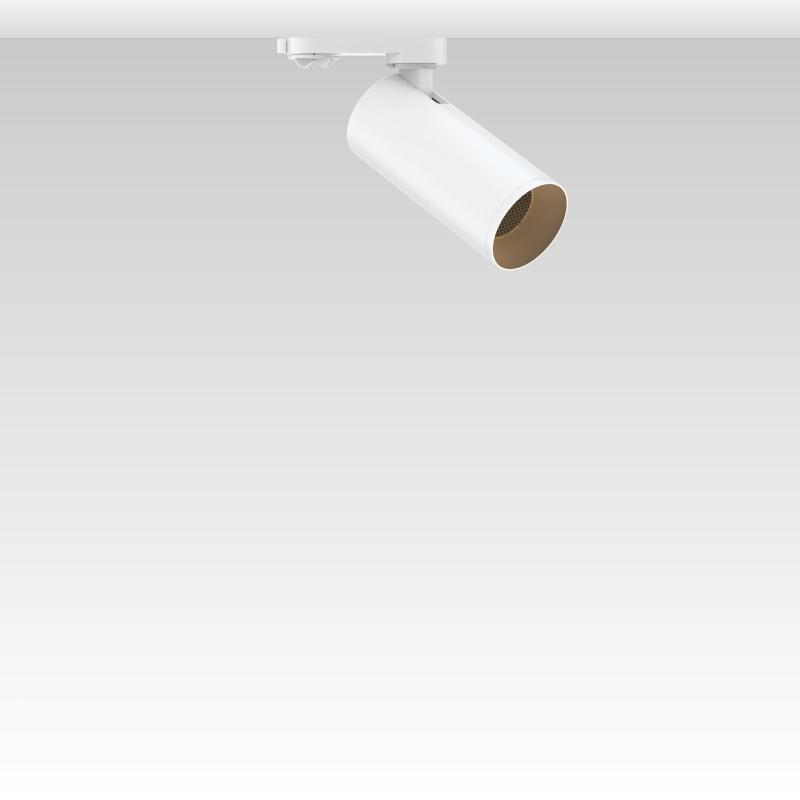

The Snoop Track is a track luminaire in ELR's Modular Pro grade — the highest build in the range. Takes 47 interchangeable LED module options, module can be upgraded on site with Ceiling Safe features. Beam angles range from 10° to 60° — narrow for accent, wide for general wash. Colour temperature in 2200K to 5000K, tuneable white, warm dimming or settable 1800K to 5500K with flexiK. ColourMX colour mixing is also available in RGBW (red, green and blue with high-quality cool white) or RGBSW (high efficiency full RGB colour and white from 1800K to 12000K). Specify body in a variety of colours and finishes — matt or brushed, reflector in matt, chrome or brushed.

Fixture Type:

Fixture

Size

55mm (Diameter) 120mm (Length)

Beam Angle

15°, 25°, 40°

LED Module & Driver

CRI

ProART (Ra 95, R9 >50), ProART98 (Ra 98, R9 >95)

Delivered Lumens

137lm - 999lm

System Power

6.2W - 10W

CCT

Single CCT, ComfySHIFT, Warm Dim, tuneWHITE, FlexiK, ColourMX

SNOOP TRACK 2 ROUND

Technology and Feature

ATePS ATePS
ComfyEYE ComfyEYE
X-Beam X-Beam
ProART98 ProART98
ProART ProART
NFC NFC

Driver

Non-Dim Non-Dim
Phase Phase
0-10V 0-10V
DALI DALI
Casambi Casambi
DALI DT8 DALI DT8
DMX DMX

Accessories

Anti-Glare Louvre Anti-Glare Louvre
Soft Lens Soft Lens
Linear Spread Lens Linear Spread Lens

Fixture

Colour Options

Colour

Matt White RAL 9003

Matt White RAL 9003

Matt Black RAL 9011

Matt Black RAL 9011

Brushed Bronze

Brushed Bronze

Brushed Brass

Brushed Brass

Brushed Copper

Brushed Copper

Reflector Colour

Matt White RAL 9003

Matt White RAL 9003

Matt Black RAL 9011

Matt Black RAL 9011

White / Black

White / Black

Chrome

Chrome

Chrome Black

Chrome Black

Titanium Gold

Titanium Gold

Brushed Bronze

Brushed Bronze

Brushed Brass

Brushed Brass

Brushed Copper

Brushed Copper

Colour Temp

5000K

5000K

4000K

4000K

3500K

3500K

3000K

3000K

2700K

2700K

2400K

2400K

2200K

2200K

ComfySHIFT

ComfySHIFT

tuneWHITE 2700K-12000K

tuneWHITE 2700K-12000K

tuneWHITE 2700K-6500K

tuneWHITE 2700K-6500K

tuneWHITE 2700K-5500K

tuneWHITE 2700K-5500K

tuneWHITE 1800K-4000K

tuneWHITE 1800K-4000K

tuneWHITE 1800K-3100K

tuneWHITE 1800K-3100K

WARM DIM 1800K-3100K

WARM DIM 1800K-3100K

FlexiK

FlexiK

Red Green Blue SuperiorWhite (2700K)

Red Green Blue SuperiorWhite (2700K)

Red Green Blue SuperiorWhite (3500K)

Red Green Blue SuperiorWhite (3500K)

Beam Angle

40°

40°

25°

25°

15°

15°
