Piazzo Series
The Piazzo is a downlight in ELR's Modular Essential grade — one step below Pro, keeping the same premium LED module in a simplified fixture and driver, with tilting up to 30°. Takes 49 interchangeable LED module options, module can be upgraded on site with Ceiling Safe features. Beam angles range from 7° to 60° — narrow for accent, wide for general wash. Colour temperature in 2200K to 5000K, tuneable white, warm dimming or settable 1800K to 5500K with flexiK. ColourMX colour mixing is also available in RGBW (red, green and blue with high-quality cool white). Specify body in a variety of colours and finishes — matt or brushed. Available round or square. With Trim or Trimless installation. The gimbal adjustment suits retail and showcase applications, where individual objects and displays need to be aimed at and picked out.
Fixture Type:
Fixture
Cutout
60mm (Trim), 60mm (Trimless)
Size
65mm (Trim), 56mm (Trimless)
Beam Angle
8°, 15°, 25°, 40°
LED Module & Driver
CRI
ProART (Ra 95, R9 >50), ProART98 (Ra 98, R9 >95)
Delivered Lumens
136lm - 810lm
System Power
3W - 8W
CCT
Single CCT, Warm Dim, tuneWHITE, FlexiK, ColourMX

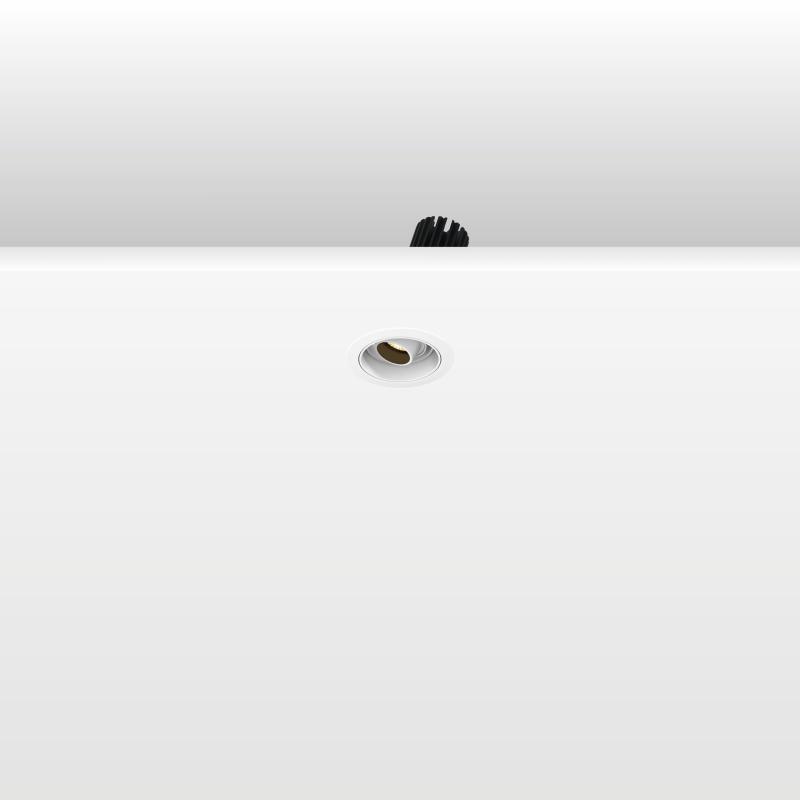

PIAZZO 2 ROUND
Technology and Feature
Ceiling Safe
ATePS
ComfyEYE
X-Beam
ProART98
ProART
NFC
Driver
Non-Dim
Phase
0-10V
DALI
Casambi
DALI DT8
DMX
Accessories
Anti-Glare Louvre
Soft Lens
Comfort Pro
Linear Spread Lens
Fixture
Colour Options
Colour
Matt White RAL 9003
Matt Black RAL 9011
Brushed Bronze
Brushed Brass
Brushed Copper
Colour Temp
5000K
4000K
3500K
3000K
2700K
2400K
2200K
tuneWHITE 2700K-12000K
tuneWHITE 2700K-6500K
tuneWHITE 2700K-5500K
tuneWHITE 1800K-4000K
tuneWHITE 1800K-3100K
WARM DIM 1800K-3100K
FlexiK
Red Green Blue SuperiorWhite (2700K)
Red Green Blue SuperiorWhite (3500K)
Beam Angle
40°
25°
15°
8°
