Nova Series
The Nova is a high bay luminaire in ELR's Modular Pro grade — the highest build in the range. Takes 4 interchangeable LED module options, module can be upgraded on site with Ceiling Safe features. Beam angles range from 15° to 60° — narrow for accent, wide for general wash. Colour temperature in 2200K to 5000K or tuneable white. Specify body in Matt White RAL 9003 or Matt Black RAL 9011, reflector in matt or chrome. Available square. It is made for the very high ceiling structures of 10 m and beyond — warehouses, industrial halls, atria and large retail volumes where the fitting sits far above the floor.
Fixture Type:
Fixture
Size
388 x 180 x 213mm
Beam Angle
15°, 35°, 60°
LED Module & Driver
CRI
ProART (Ra 95, R9 >50), ProART98 (Ra 98, R9 >95)
Delivered Lumens
3282lm - 8098lm (multiply 2 for total)
System Power
36W - 54W
CCT
Single CCT, tuneWHITE

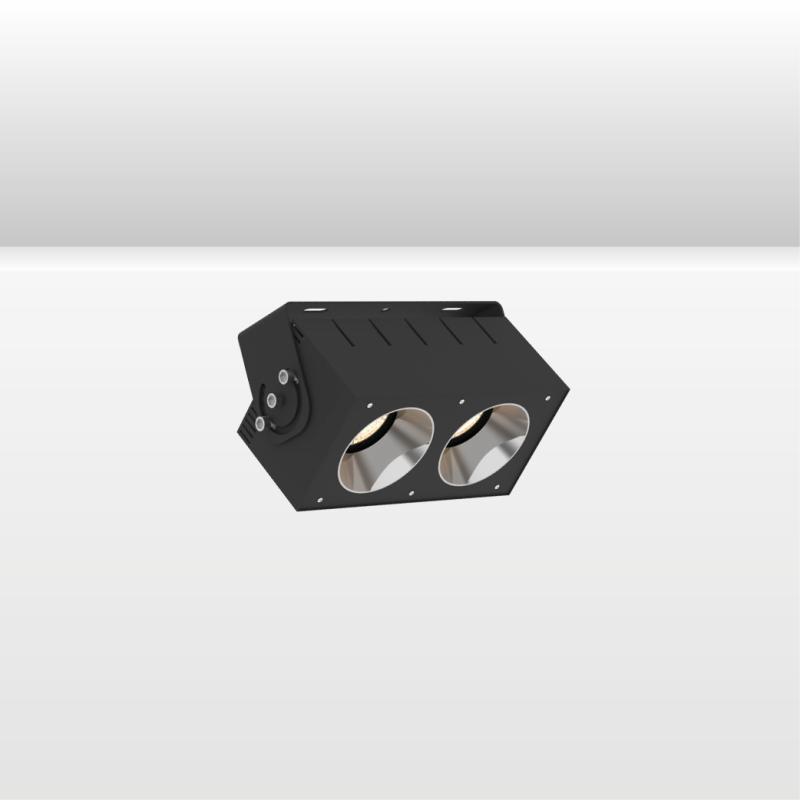

NOVA 6 SQUARE (DUO)
Technology and Feature
ATePS
ComfyEYE
X-Beam
ProART98
ProART
NFC
Driver
Non-Dim
Phase
0-10V
DALI
Casambi
Accessories
Anti-Glare Louvre
Soft Lens
Linear Spread Lens
IP54 Seal
Fixture
Colour Options
Colour
Matt White RAL 9003
Matt Black RAL 9011
Reflector Colour
Matt White RAL 9003
Matt Black RAL 9011
Chrome
Chrome Black
Titanium Gold
Colour Temp
5000K
4000K
3500K
3000K
2700K
2400K
2200K
Beam Angle
60°
35°
15°
